- Size: 1.5
- Place of Origin: CHINA
- Brand Name: TST
- Model Number: Flange BV
- Weight: 14.000 kg

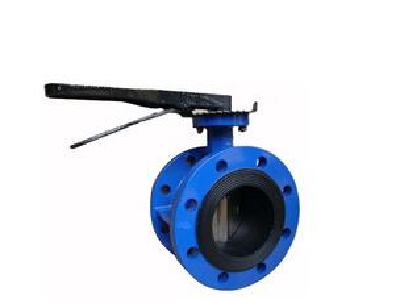

Electric Flanged DN50 - DN2000 1.6 MPa Ductile Iron Butterfly Valve for Water
Ductile Iron Butterfly Valves
Double Flanged Butterfly Valves With Disc Double Eccentric With Resilient Seat Conform to BS EN593 (BS5155)
Size:DN50-DN2000
Specification:
| Nominal pressure (MPa) | 1.6 | ||
| Testing Pressure | Body shell | 2.4 | |
| Seal | 1.76 | ||
| Working pressure (MPa) | 1.6 | ||
| Suitable temperature (°C) | ≤80 | ||
| Suitable Medium | Water | ||
Technical and requirement
Design, manufacture are according to standard of BSEN593-98〔Butterfly Valves For Waterworks Purpose〕.
The flange of the butterfly valve is according to PN1.6 Mpa flange of BSEN1092-2 for internal ductile iron flanges.
Inspection is according to standard PrEN12266-3.(No Visible Leakage).
The valves for PN1.0 MPa and PN2.5 MPa are also can be designed and manufactured.
- Size: 1.5
- Place of Origin: CHINA
- Brand Name: TST
- Model Number: Flange BV
- Weight: 14.000 kg
Electric Flanged DN50 - DN2000 1.6 MPa Ductile Iron Butterfly Valve for Water
Ductile Iron Butterfly Valves
Double Flanged Butterfly Valves With Disc Double Eccentric With Resilient Seat Conform to BS EN593 (BS5155)
Size:DN50-DN2000
Specification:
| Nominal pressure (MPa) | 1.6 | ||
| Testing Pressure | Body shell | 2.4 | |
| Seal | 1.76 | ||
| Working pressure (MPa) | 1.6 | ||
| Suitable temperature (°C) | ≤80 | ||
| Suitable Medium | Water | ||
Technical and requirement
Design, manufacture are according to standard of BSEN593-98〔Butterfly Valves For Waterworks Purpose〕.
The flange of the butterfly valve is according to PN1.6 Mpa flange of BSEN1092-2 for internal ductile iron flanges.
Inspection is according to standard PrEN12266-3.(No Visible Leakage).
The valves for PN1.0 MPa and PN2.5 MPa are also can be designed and manufactured.
